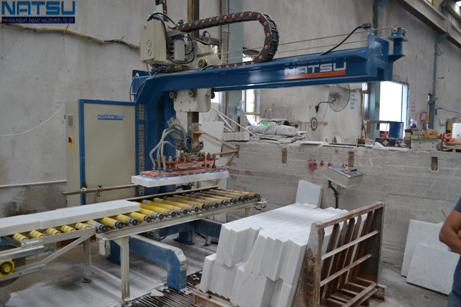

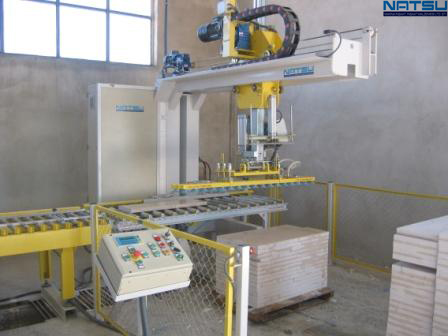

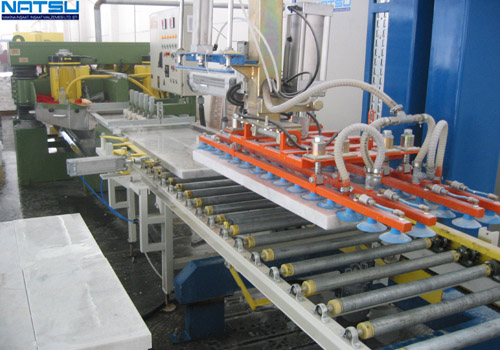

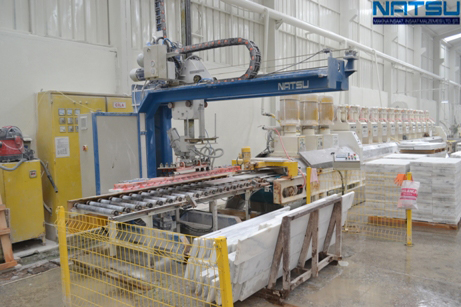

Automatic strip loading/unloading machines are especially used to load/unload the strips to the splitting machines, disc cutters or polishing lines. The strips which are lined up in vertical/horizontal position on the pallets are placed in front of the automatic loading machines by a forklift after cutting by the block cutters. The operator enters the position of the material (vertical/ horizontal) and starts up the machine.

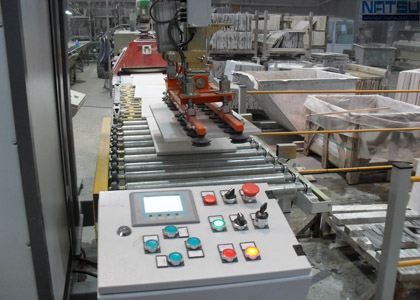

Automatic strip loading machine takes the strips from the pallets in order and releases them on the conveyor horizontally. The conveyor automatically feeds the second strip to the machine after the first one. In the meanwhile, the automatic strip loading machine brings the next strip to the conveyor and releases it if the previously fed strip is done.

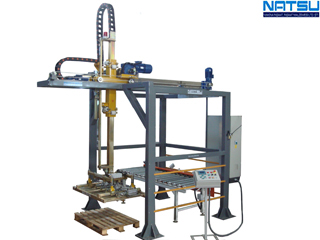

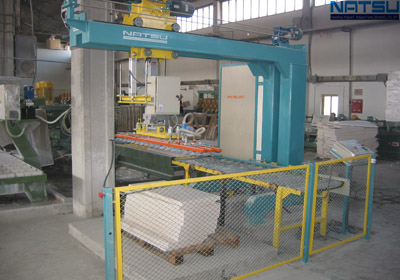

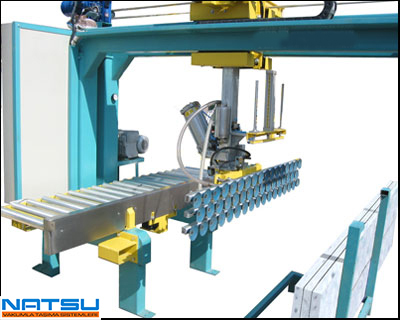

AUTOMATIC LOADING-UNLOADING FOR STRIPS

Mechanics - High togue drivers unit, - Modern welding technology and assembling technology			Service - User manual for operators, - Annual maintenance service (denpends on customer demand) - After marketing service - Spare parts warranty		Vacuum - Technic - Optimum vacuum pump - Gentle holding the work-piece by suction plates, - Suction Cups ( depending on the carrying capacity) - Vacuum Safety Valve
Warranty - 2 year main functional warranty period - Working warranty for custom-made machines (According to agreement)

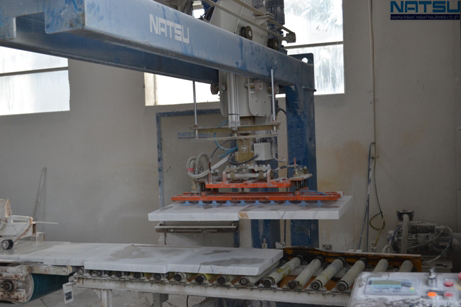

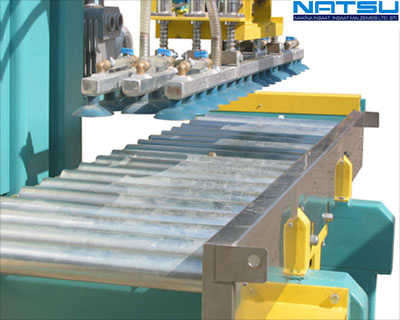

						Using cylinder while vacuuming process prevents marbles to get stuck


STANDART PROGRAM				Motorized Conveyor With speed control Work-piece positioning control on the conveyor Stainless steel safety fence
	Vertical	Horizontal

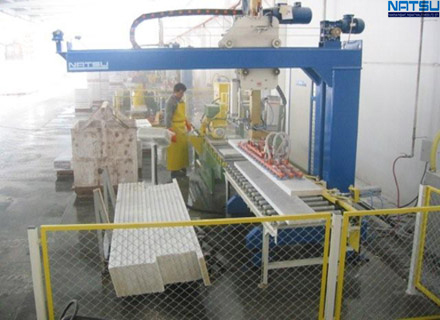

AUTOMATIC LOADING-UNLOADING FOR MACHINES

Automatic strips loading /unloading machines are used to load / unload work-pieces to marbles head cutting and marble polishing machines. .

The strips are placed in front of the automatic loading machines by the lift which are kept horizontal/vertical position on the pallets after cutting by automatic block cutting machines. It just needs the operator to enter the position and the height of the strip, then start-up the machine. Automatic strip loading machine takes the strips from pallets in order, then put on the conveyor in horizontal position. The conveyor automatically feeds the second strip to the machine after finishing the first strip.
